HellermannTyton 800-00004 SM1-PVC-BK Cable Sleeving, 75 m — BOLTON SKU 54247.
About the HellermannTyton 800-00004 SM1-PVC-BK Cab Cable Manag

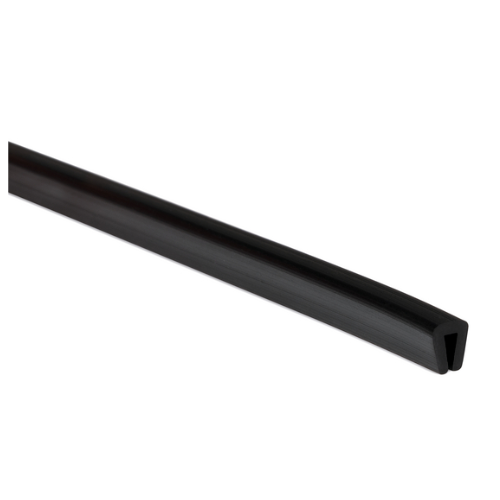

This is the bulk reel presentation of HellermannTyton’s SM1 edge protection profile, catalogued as SM1-PVC-BK under article number 800-00004 and supplied as a continuous 75 m length. Buying the profile by the reel rather than in short pieces suits panel shops and harness benches that consume it steadily: lengths are cut to suit each aperture, with no fixed piece size to design around and minimal offcut waste. The extruded profile is soft black PVC classified UL 94 HB, cadmium-free, and specified from -65 °C to +105 °C with intermittent excursions to +135 °C. Its clamping channel fits panel material 1.0 mm to 2.0 mm thick and holds by its own grip, requiring no adhesive or fasteners. Section dimensions are 5.0 mm width (W), 1.0 mm secondary width (W2), 6.3 mm height (H) and 4.9 mm secondary height (H2).
Key specifications
| Attribute | Value |
|---|---|
| Article number / type | 800-00004 / SM1-PVC-BK |
| Supply length | 75 m reel |
| Material | Soft PVC, cadmium-free |
| Colour | Black (BK) |
| Flammability rating | UL 94 HB |
| Operating temperature | -65 °C to +105 °C (intermittent +135 °C) |
| Panel thickness range | 1.0 mm to 2.0 mm |
| Section (W x H) | 5.0 mm x 6.3 mm |
Typical applications
A 75 m reel is a stores-level purchase for organisations that fit out enclosures, racks, junction boxes and vehicle or shelter panels in volume, where dozens of apertures per build each need a short protective length. It is equally practical for maintenance stores keeping one reel to cover ad-hoc repairs across many different assemblies. Cut lengths are trimmed square and pressed onto the panel edge by hand.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
