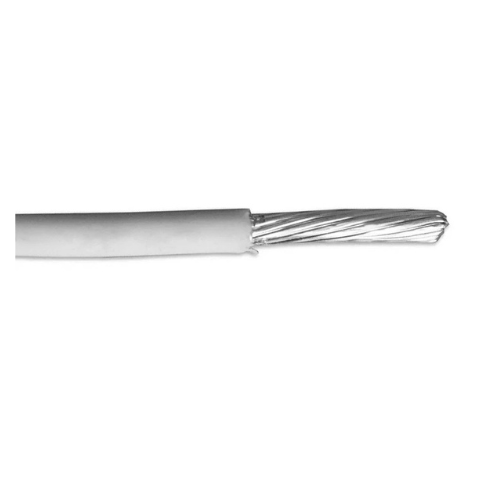

M22759/32-22-9 WIRE,22AWG,M22759/32,WHT,STRAND:19 — BOLTON SKU 54867.
About the M22759/32-22-9 Aerospace Wire
M22759/32-22-9 is single-conductor airframe wire manufactured to the M22759/32 sheet of the SAE AS22759 specification (originally MIL-W-22759). The /32 construction pairs a tin-plated copper conductor with a single wall of crosslinked, modified ETFE fluoropolymer insulation — a lightweight construction rated at 600 V and 150 °C. In this part number, 22 denotes the conductor size (22 AWG, built from 19 strands of 34 AWG tinned copper, matching the STRAND:19 note in the item title) and the final 9 denotes white insulation. Distributor data lists a finished outside diameter of approximately 1.04–1.14 mm and a maximum conductor resistance of 16.2 ohms per 1000 ft at 20 °C. AS22759/32 wire is a qualified-products-list (QPL) military wire type widely used for general-purpose airframe and equipment wiring.
Key specifications
| Type | Single-conductor airframe / hook-up wire |
|---|---|
| Specification | SAE AS22759/32 (M22759/32) |
| Conductor | 22 AWG, 19/34 stranded, tin-plated copper |
| Insulation | Crosslinked, modified ETFE fluoropolymer, single wall |
| Voltage rating | 600 V |
| Temperature rating | 150 °C |
| Colour | White (-9) |
| Finished OD | Approx. 1.04 – 1.14 mm |
Typical applications
AS22759/32 wire is used throughout aircraft, UAV and defence-electronics wiring for point-to-point and harness runs where low weight and fluid-resistant fluoropolymer insulation are required. It is a routine consumable in avionics build shops and MRO harness repair stations.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
