DEA-9P-K87-F0 D-Sub Plug Housing, 9-Position, Crimp, 20-28 AWG — BOLTON SKU 55587.
About the DEA-9P-K87-F0 D-Sub Plug Housing, 9-Posi Rectangular

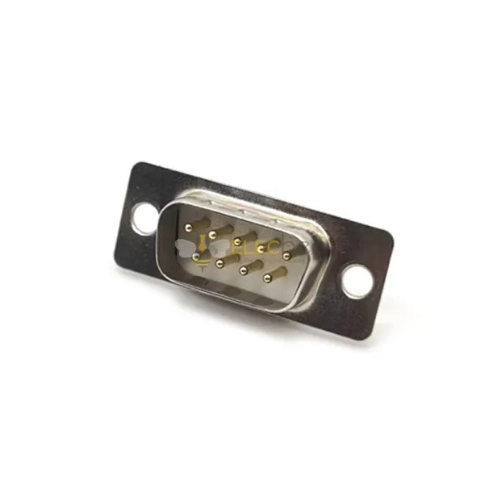

DEA-9P-K87-F0 is the nine-position D-subminiature plug housing, the pin-contact half that mates with a nine-position socket assembly. The letter P in the designation marks the pin configuration. Termination is by crimp: each contact is crimped onto its conductor with a hand or bench tool and then pushed into the housing cavity until the retention clip latches, which allows a single circuit to be extracted and replaced without rebuilding the assembly. Conductors from 20 AWG to 28 AWG are accommodated, and the crimp barrel selected must match the actual conductor size within that range. Listed as a DEA-9P-K87-F0 D-Sub Plug rectangular connector, the item is the housing on its own; crimp contacts, backshells, jackscrews and insertion or extraction tooling are ordered separately. Contact plating and the applicable crimp tool should be confirmed against the manufacturer datasheet at enquiry stage.
Key specifications
| Attribute | Value |
|---|---|
| Manufacturer designation | DEA-9P-K87-F0 |
| Connector type | D-subminiature (rectangular) |
| Component | Plug housing |
| Contact positions | 9 (DE shell size) |
| Contact gender | Pin |
| Termination | Crimp |
| Conductor range | 20 to 28 AWG |
| BOLTON SKU | 55587 |
Typical applications
Crimp-contact plug housings are specified where a harness has to be repairable in the field or reworked during integration, since a damaged circuit can be extracted and re-terminated without scrapping the connector. Nine-way plugs of this kind appear on serial links, encoder and transducer leads and instrumentation looms on test rigs and ground support equipment. Ordering the housing separately from the contacts also lets a build standardise on one contact plating across several connector sizes.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
