Description
Alpha Wire LC162 BK088 Lacing Cord, PET, Black, 2.16 mm x 457 m — BOLTON SKU 55588.
About the Alpha Wire LC162 BK088 Lacing Cord

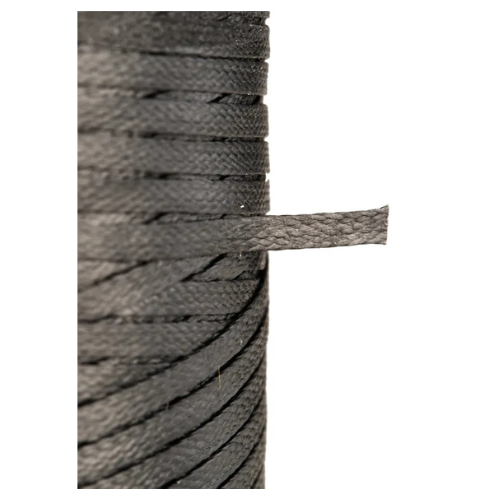

The Alpha Wire LC162 technical component is a flat braided lacing tape used to bundle and secure wire harnesses without the hard edges associated with plastic cable ties. The tape is braided from polyester (PET) yarn and given a wax finish, which helps the knots bed down and hold their position. Published dimensions are 2.16 mm wide and 0.35 mm thick, supplied in black on a 457.2 m spool. Rated tensile strength is 50 lb, and the operating temperature range spans -73 °C to +177 °C, which covers most airborne and engine-bay harness environments. The material is made to specification class A-A-52081-B-3 and is free of mercury and copper, so it does not contribute those contaminants in a fire. Because the tape is flat rather than round, it spreads the clamping load across the bundle instead of concentrating it on one conductor, which is why lacing remains standard practice on many aerospace harnesses.
Key specifications
| Manufacturer part number | LC162 BK088 |
|---|---|
| Material | Polyester (PET), wax finish |
| Construction | Flat braided |
| Width | 2.16 mm |
| Thickness | 0.35 mm |
| Spool length | 457.2 m |
| Tensile strength | 50 lb |
| Operating temperature | -73 °C to +177 °C |
| Specification class | A-A-52081-B-3 |
| Colour | Black |
Typical applications
The 2.16 mm width suits medium harness bundles and shield-tail dressing on aircraft, vehicle and shelter wiring. The wide temperature range allows one tape to be used on engine-adjacent looms as well as on cabin and rack harnesses. Black is generally chosen where lacing must stay visually unobtrusive on exposed runs, and the wax finish helps the ties hold on smooth jacket materials.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
