M27500-22TG1T14 CABLE, 22 AWG, 1 CONDUCTOR, SHIELDED — BOLTON SKU 55615.
About the M27500-22TG1T14 Aerospace Wire

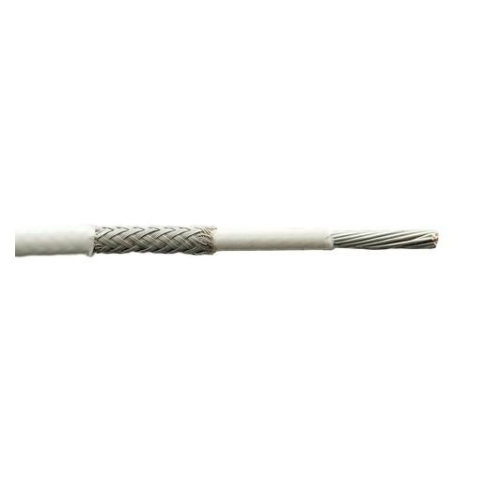

M27500 is the military specification covering shielded and jacketed cables built up from qualified basic airframe wires. In this construction the -22TG1T14 code describes a single 22 AWG conductor, over which a tinned copper braid shield and an extruded jacket are applied. Distributor data for this part gives a conductor of 19 strands of 34 AWG tin-plated copper, extruded ETFE (ethylene tetrafluoroethylene) primary insulation to SAE AS22759/18, a tin-plated copper braid shield with 85% coverage, and an extruded ETFE outer jacket. The cable is rated 600 V and 150 °C maximum. ETFE is chosen for airframe wiring because it combines a thin, light wall with mechanical toughness, abrasion resistance and chemical resistance, and the braided shield provides the electromagnetic screening required where a signal path runs alongside power or switching circuits.
Key specifications
| Attribute | Value |
|---|---|
| Specification | M27500 (shielded and jacketed cable) |
| Basic wire | SAE AS22759/18 |
| Conductor size | 22 AWG |
| Number of conductors | 1 |
| Conductor construction | 19 strands of 34 AWG, tin-plated copper |
| Insulation | Extruded ETFE |
| Shield | Tin-plated copper braid, 85% coverage |
| Jacket | Extruded ETFE |
| Voltage rating | 600 V |
| Temperature rating | 150 °C maximum |
Typical applications
Shielded M27500 cable is used for signal, sensor and control runs in airframe and avionics harnesses, on UAV platforms, and in ground-support and vehicle installations built to aerospace wiring practice. The single shielded conductor suits screened analogue and low-level digital links that must be protected from interference. Harness shops and MRO facilities hold it in reel form for build and repair against wiring diagrams.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
