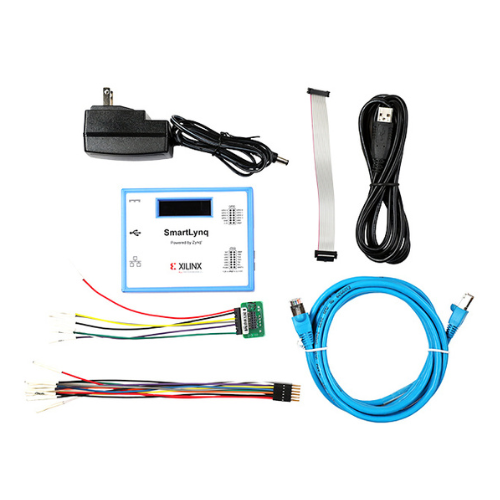

SmartLynq HW-SMARTLYNQ-G JTAG Data Cable — BOLTON SKU 56868.
About the SmartLynq HW-SMARTLYNQ-G JTAG Data Cable
This item is catalogued under the SmartLynq HW-SMARTLYNQ-G JTAG rf adapter reference, but the hardware is a JTAG data cable rather than an RF adapter; the wording is a search label, not a description of the product. HW-SMARTLYNQ-G is the part number for the SmartLynq data cable, listed by AMD, which was formerly published under the Xilinx brand. The cable connects a host workstation to the JTAG port of a target board so that programmable devices on that board can be configured and debugged. JTAG is the boundary-scan and debug interface standardised as IEEE 1149.1, and an adapter of this kind converts the host-side connection into the JTAG signals the target expects while handling the voltage referencing of those signals. Host interface options, supported JTAG clock rates, target voltage range, compatible device families and the cables and adapters supplied in the box should be confirmed against the AMD documentation with your enquiry.
Key specifications
| Attribute | Value |
|---|---|
| Brand | AMD (formerly Xilinx) |
| Designation | HW-SMARTLYNQ-G |
| Product family | SmartLynq data cable |
| Product type | JTAG data cable / debug adapter |
| Target interface | JTAG (IEEE 1149.1) |
| BOLTON SKU | 56868 |
Typical applications
A JTAG data cable is bench and integration equipment: loading configuration images into programmable logic, running debug sessions against a target design, and performing boundary-scan continuity checks on an assembled board. It is also used in production and depot settings to program units at final assembly or to reload firmware during repair. Because it is a development and support tool rather than an installed item, buyers usually order it against a project rather than a build of materials.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
