XT60H-F Female Bullet Power Connector — BOLTON SKU 57226.
About the XT60H-F Female Bullet Power Connector

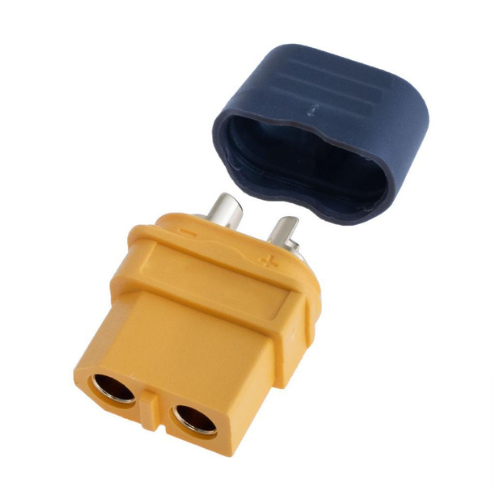

The XT60H-F Female Bullet connector is the socket half of a two-pole DC power connector in the XT60H format. Bullet contacts are cylindrical: the male contact is a solid pin with a rounded nose and the female is a sprung sleeve that grips around it along the length of engagement, which gives a large contact area within a small envelope and tolerates repeated mating cycles. The two contacts are carried in a moulded body whose profile is asymmetric, so the halves key together in one orientation only and the polarity cannot be reversed — a property that matters on a battery connector, where reversal is destructive. The F in the part number denotes the female half; the H denotes the housed variant within the XT60 family, and the exact difference from the base version should be confirmed against the manufacturer datasheet. Current rating, conductor size, contact and body materials and temperature rating should likewise be confirmed at enquiry.
Key specifications
| Attribute | Value |
|---|---|
| Designation | XT60H-F |
| Product type | DC power connector |
| Format | XT60H, two-pole |
| Gender | Female (socket) |
| Contact style | Bullet |
| BOLTON SKU | 57226 |
Typical applications
Two-pole bullet power connectors of this format are used on battery leads, power distribution harnesses and motor or ESC supply connections, particularly on unmanned platforms and portable powered equipment where a keyed, tool-free disconnect is needed. The female half is normally fitted to the source side of a battery lead so that the exposed contacts are recessed when the pair is separated. Bullet contacts suit assemblies that are connected and disconnected between every mission or charge cycle.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
