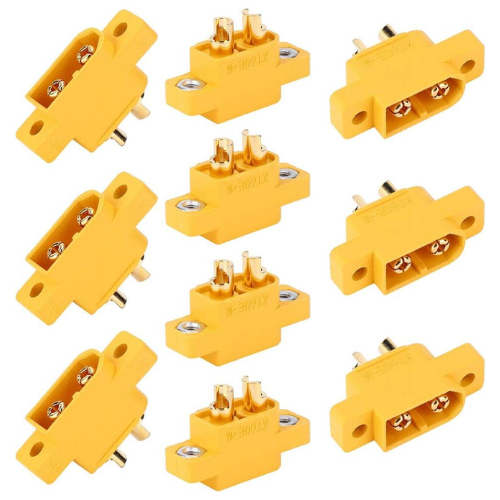

XT60E-M Male Bullet Power Connector — BOLTON SKU 57225.
About the XT60E-M Male Bullet Power Connector
The XT60E-M Male Bullet connector is the mountable male variant within the XT60 DC power connector family, a bullet-contact pattern widely used for battery, speed-controller and power-distribution connections on multirotor and model aircraft. The E-M designation identifies the mountable form: rather than being a free in-line connector terminated onto a flying lead, it is arranged to be fixed to a board or panel so the mating half is presented at a fixed position on the airframe or enclosure. That changes how a loom is designed, because the connector becomes a fixed interface rather than a joint in the middle of a cable. BOLTON has kept the specification table on this page short by design: current and voltage figures published for XT60-family parts vary between manufacturers, so the ratings applicable to the item offered are confirmed against the supplier’s own datasheet at quotation stage.
Key specifications
| Part number | XT60E-M |
|---|---|
| Connector family | XT60 DC power connector |
| Gender | Male |
| Variant | Mountable (E) version |
| Contact style | Bullet contact |
Typical applications
Mountable XT60 parts are used where the power interface has to stay in one place: on a power-distribution board, a battery-tray bulkhead, or the face of a ground-support or charging enclosure. Fixing the connector removes the strain that a flying lead transfers into the joint each time a pack is changed. They are also used on test fixtures and bench supplies so that flight batteries and airframe looms can be connected directly without building adapter cables.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
