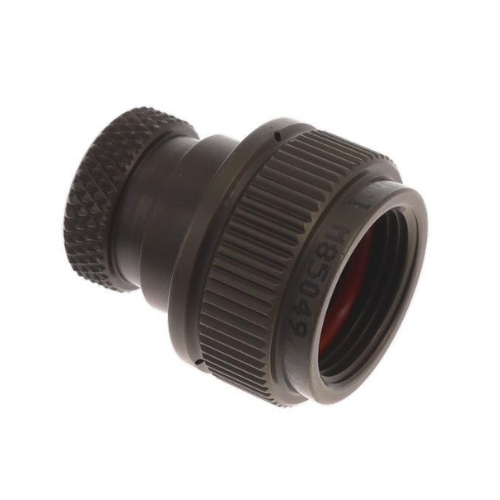

M85049/38S11W Backshell, D38999 SIII, SIV, Strain Relief Adapter, Olive Drab, Size 11 — BOLTON SKU 58802.
About the M85049/38S11W Circular Connector
M85049/38S11W is a connector accessory manufactured to the M85049/38 sheet of MIL-DTL-85049, the military specification governing electrical connector accessories. The /38 sheet defines a straight cable-clamp strain relief for MIL-DTL-38999 Series III and Series IV connectors: it threads onto the rear accessory interface of the connector and clamps the emerging wire bundle so that flexing and pulling loads are taken by the clamp rather than by the crimped contacts. This part is shell size 11, suiting D38999/20, /24 and /26 connectors of the same size, and the W finish code denotes olive drab cadmium over electroless nickel on an aluminium body. Distributor data lists a maximum accommodated cable bundle diameter of approximately 5.94 mm for this size. The saddle-bar clamp is adjustable to suit the actual bundle build-up.
Key specifications
| Type | Backshell / strain-relief cable clamp, straight |
|---|---|
| Specification | MIL-DTL-85049, sheet /38 |
| For connectors | MIL-DTL-38999 Series III & IV, shell size 11 |
| Body material | Aluminium |
| Finish | Olive drab cadmium over electroless nickel (code W) |
| Max cable diameter | Approx. 5.94 mm (distributor data) |
Typical applications
M85049/38 strain reliefs terminate the rear of D38999 connectors in aircraft, UAV and defence-system harnesses, protecting crimp joints from vibration and handling loads. Harness builders and MRO shops fit them as standard whenever a D38999 connector is assembled without an environmental or EMI backshell.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Circular / Rectangular Connectors.
