SkyRC Q200neo Dual Channel Multi-Function Smart Charger, AC 200W / DC 400W, 10A x2 — BOLTON SKU 57190.
About the SkyRC Q200neo Dual Channel Multi-Function Smart

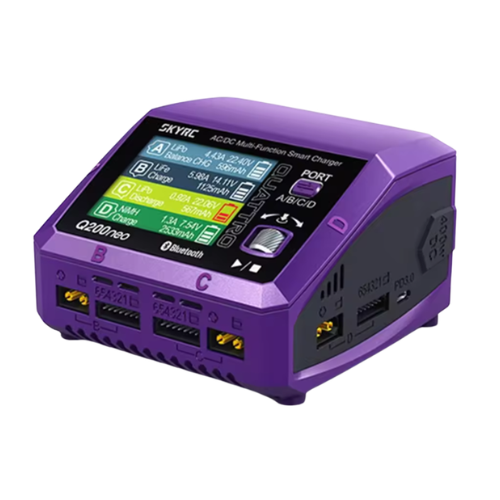

The SkyRC Q200neo ac 200w dc 400w unit is a two-channel multi-chemistry charger: 200 W maximum from a 100-240 V AC supply and 400 W from a 10-30 V DC input. Charge current is adjustable from 0.1 to 10.0 A per channel across all supported chemistries, discharge current from 0.1 to 2.0 A, and balance current reaches 800 mA maximum on lithium packs. Supported chemistries are LiPo, LiHV, LiFe and Li-ion at 1-6 cells, NiMH and NiCd at 2-15 cells, and lead-acid at 3S, 6S or 12S, with balance-charge, storage, discharge, re-peak and cycle modes. Discharge power is 5 W on the main port and up to 25 W on the balance port for a 6S LiPo. A USB-C port supplies 18 W Quick Charge 3.0 or 20 W Power Delivery, and a DC power-supply mode outputs 1.0-30.0 V at 0.1-10.0 A up to 100 W per port. Status is shown on a 2.8 inch 240 x 320 TN display. The PC-ABS V0 case measures 123 x 119 x 78 mm; weight is 680 g.
Key specifications
| Charge power | 200 W max AC / 400 W max DC |
|---|---|
| Input | 100-240 V AC, 10-30 V DC |
| Charge current | 0.1 – 10.0 A per channel |
| Discharge current | 0.1 – 2.0 A |
| Balance current | 800 mA max (lithium) |
| Battery types | LiPo/LiHV/LiFe/Li-ion 1-6S, NiMH/NiCd 2-15 cells, Pb 3S/6S/12S |
| USB-C output | QC3.0 18 W / PD 20 W |
| DC power supply mode | 1.0 – 30.0 V, 0.1 – 10.0 A, 100 W max per port |
| Display | 2.8 in TN, 240 x 320, 262K colours |
| Case | PC-ABS V0, 123 x 119 x 78 mm, 680 g |
Typical applications
A dual-channel unit that runs from either mains or a 10-30 V DC source is aimed at field and workshop battery management where two packs are turned around in parallel: balance charging and storage-charging UAV flight packs between sorties, conditioning and cycling NiMH and NiCd packs for handheld equipment, and maintaining lead-acid batteries. The DC power-supply mode and USB-C output let the same unit double as a bench supply and a device charger, which reduces the equipment carried to a deployed or remote site.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Avionics & UAV Systems.
