Description

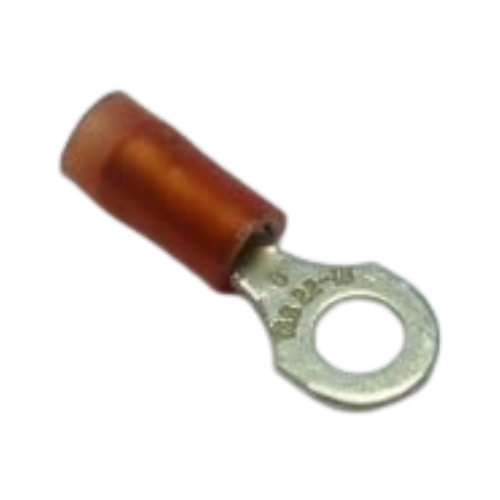

MS25036-149 PIDG, Rings & Spades, Ring Tongue, 16-22 — BOLTON SKU 61137.
About the MS25036-149 Technical Component
MS25036-149 is a military-standard, insulated ring tongue crimp terminal. The MS25036 sheet covers pre-insulated ring terminals for aircraft electrical systems, and the -149 dash number is supplied by TE Connectivity under its PIDG (Pre-Insulated Diamond Grip) family, cross-referenced to TE part 320551 by distributor listings. PIDG terminals combine a copper ring tongue with a nylon insulation sleeve and a metal insulation-support barrel that grips the wire insulation, giving added vibration resistance at the crimp. Distributor data for MS25036-149 lists a #8 stud size with red insulation, the colour code associated with the small-gauge wire range recorded in the listings (22–18 AWG). The terminal is applied with a calibrated ratchet crimp tool matched to the PIDG series.
Key specifications
| Type | Ring tongue crimp terminal, pre-insulated |
|---|---|
| Standard | MS25036 (-149 dash number) |
| Product family | TE Connectivity PIDG (cross-ref 320551) |
| Stud size | #8 |
| Wire range | 22–18 AWG (per distributor listings) |
| Insulation | Nylon, red, with insulation-support sleeve |
Typical applications
MS25036 ring terminals are standard hardware for aircraft and defence electrical terminations — grounding studs, terminal blocks and equipment bonding — and are used in MRO shops wherever a qualified, inspectable crimp termination is required.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Terminals, Lugs & Ferrules.
