Description

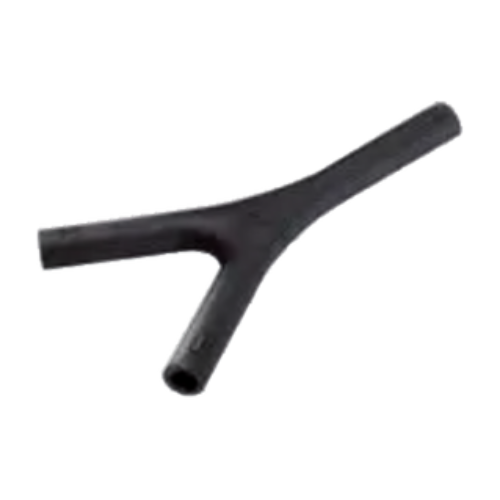

381A301-71/42-0 Heat-Shrink Cable Boot (Y-Boot), Polyolefin, Adhesive-Coated — BOLTON SKU 53268.
About the 381A301-71/42-0 Heat-Shrink Cable Boot ( Heat Shrink
Part 381A301-71/42-0 is an adhesive-coated polyolefin heat-shrink cable boot in a Y configuration: a moulded shape with one body that divides into two legs. As 381A301-71/42-0 Heat-Shrink Cable heat shrink tubing it is fitted at a breakout, the point where a harness splits into two branches, which is one of the least protected places on a loom and a common ingress path for moisture and contaminant. The boot is recovered with controlled heat; the adhesive on the inner wall softens and flows as the material shrinks so that the boot seals against the outer jackets of the cables it covers rather than simply gripping them. The catalogue record states the part number, the boot form, the polyolefin material and the adhesive coating. Recovered and expanded dimensions, colour, temperature rating and the governing product specification should be confirmed against the manufacturer’s part drawing before ordering.
Key specifications
| Part number | 381A301-71/42-0 |
|---|---|
| Product type | Heat-shrink cable boot |
| Configuration | Y-boot (single body, two legs) |
| Material | Polyolefin |
| Inner wall | Adhesive-coated |
| Installation | Heat recovered |
Typical applications
Two-leg transition boots are installed where a harness branches into two runs and the split has to be sealed and mechanically supported, on airframe, vehicle and shelter looms and at connector backshell transitions. The adhesive coating makes them suited to installations exposed to moisture, washdown, fluids or salt-laden air, where a plain shrink sleeve would not seal against the cable jacket. They are consumed one per breakout during harness build and during repair after a loom has been cut back.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Heat-Shrink & Sleeving.
