5024390600 Connector Plug, 6-Pin, 2.00 mm, Female Crimp — BOLTON SKU 53817.
About the 5024390600 Connector Plug, 6-Pin, 2.00 m Connector

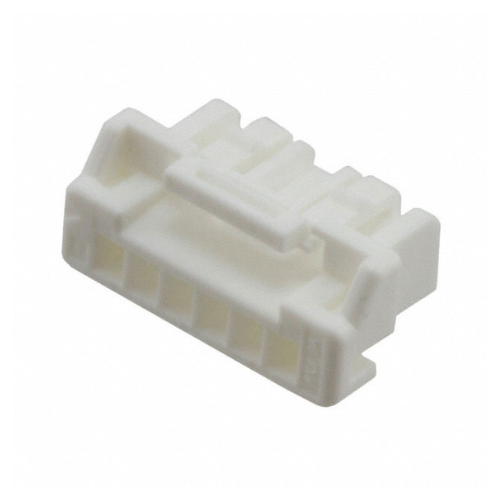

Part 5024390600 is a six-position rectangular connector plug housing from the Molex CLIK-Mate 502439 series, built on a 0.079 in (2.00 mm) contact pitch. It is a free-hanging, in-line housing — that is, it terminates a cable rather than mounting to a panel or board — and it accepts crimp-terminated contacts that are ordered separately from the housing. The insulator is moulded in polybutylene terephthalate (PBT) and the housing is finished in white. Retention to the mating half is by a latch lock, so the connection resists being pulled apart by cable movement and is released deliberately by depressing the latch. Because the contacts are crimped and then inserted, individual circuits can be extracted and replaced during rework without disturbing the rest of the loom.
Key specifications
| Attribute | Value |
|---|---|
| Series | Molex CLIK-Mate 502439 |
| Number of positions | 6 |
| Pitch | 2.00 mm (0.079 in) |
| Connector type | Plug housing, free hanging / in-line |
| Termination | Crimp (contacts sold separately) |
| Insulator material | Polybutylene terephthalate (PBT) |
| Fastening | Latch lock |
| Colour | White |
Typical applications
Six circuits on a 2.00 mm pitch in a free-hanging plug is a common arrangement for internal cable-to-board links: sensor and encoder tails, display and keypad ribbons, fan and indicator feeds, and short interconnects between stacked PCBs inside an enclosure. The latch lock suits assemblies exposed to handling or vibration during service access. Specify the matching crimp contacts and mating header when raising an enquiry so the complete set can be quoted together.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Circular / Rectangular Connectors.
