Description

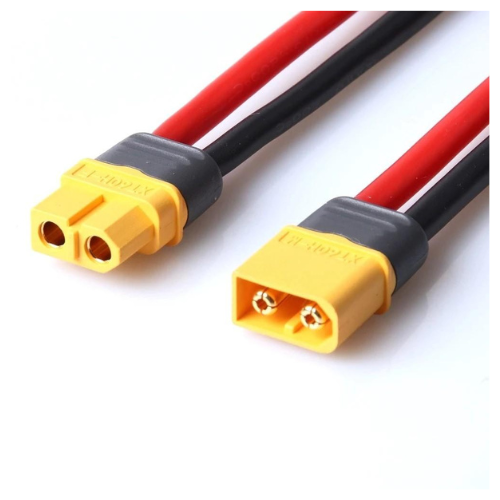

XT60 Female Battery Power Connector, 2-Pin, Solder Type — BOLTON SKU 56156.
About the XT60 Female Battery Power Connector, 2-P Soldering
This XT60 Female Battery Power Connector 2-Pin is the female (socket) half of the XT60 DC power connector pattern, the de facto standard battery connector across much of the UAV and RC world. Convention places the female connector on the battery pack itself, because its recessed sockets shield the live contacts from accidental shorting when the pack is disconnected. The connector carries two gold-plated socket contacts in a keyed nylon shell that only mates one way, enforcing correct polarity, and its solder-bucket terminations take heavy-gauge flexible wire, commonly up to 12 AWG. The XT60 pattern is rated in the 60 A continuous class, with the stiff nylon housing providing a snug fit that holds under vibration. The mating male connector is listed separately.
Key specifications
| Connector pattern | XT60 |
|---|---|
| Gender | Female (socket) |
| Positions | 2 (polarised, keyed) |
| Termination | Solder bucket |
| Current class | 60 A continuous (pattern rating) |
| Contacts / housing | Gold-plated socket contacts, nylon housing |
| Typical wire size | Up to 12 AWG |
Typical applications
Soldered to lithium battery packs for small UAS, RC platforms and portable equipment as the protected, pack-side half of the power interface. Also used on charge leads, power-distribution boards and bench supplies that must accept XT60-equipped batteries.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
Browse more in Uav Power Energy.
