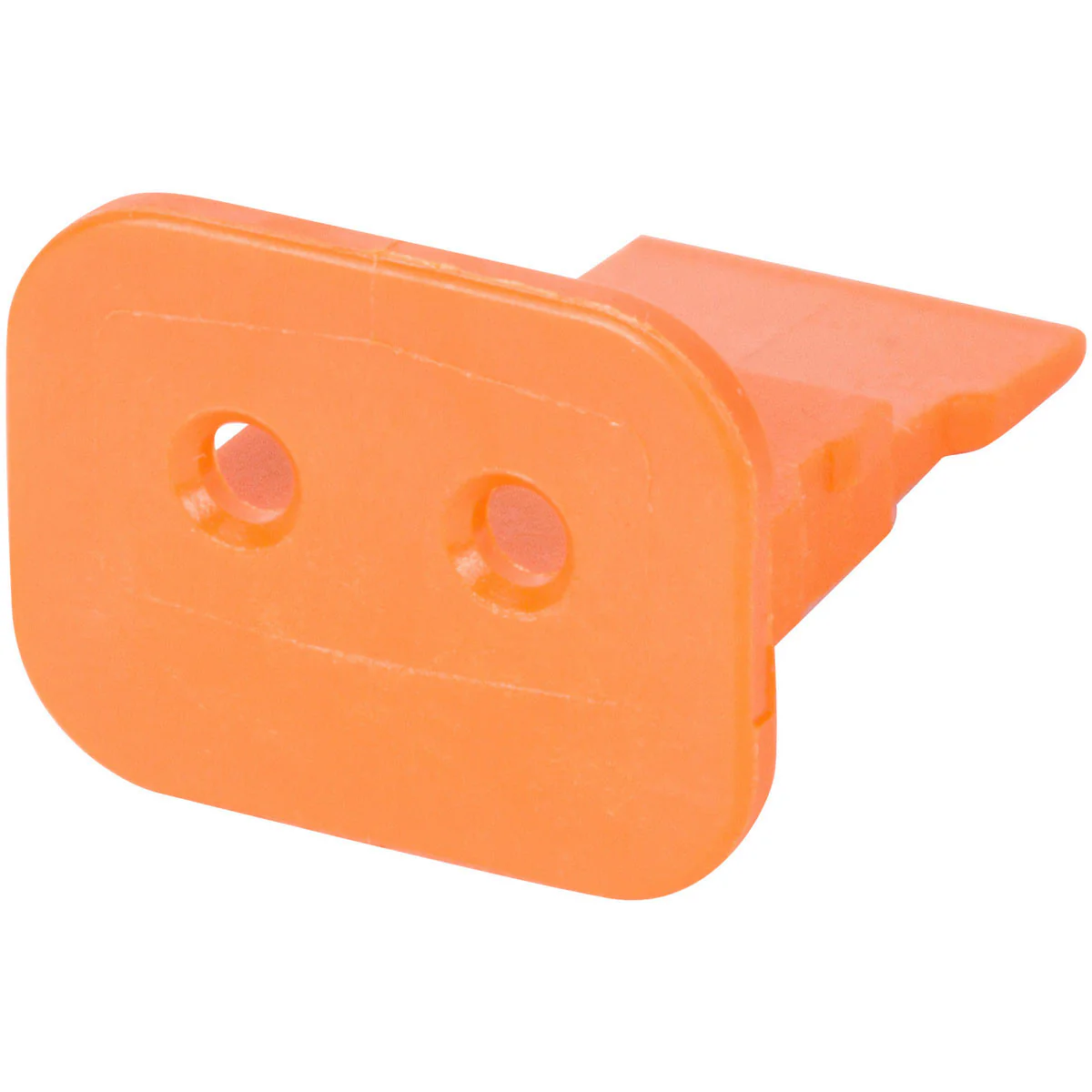

W2S DT Series Wedgelock, 2-Way, Orange — BOLTON SKU 59306.
About the W2S DT Series Wedgelock 2-Way Orange
The W2S DT Series technical component is the two-way wedgelock used with DEUTSCH DT series two-position plug housings, moulded in glass-filled PBT and supplied in orange. A wedgelock is not packaging or an accessory: TE describes it as a required component for every DEUTSCH DT housing. It is assembled at the mating interface and pressed into place after the contacts have been inserted, and in doing so it holds each contact at the correct alignment and provides secondary retention behind the primary locking fingers of the cavity. If a contact has not been pushed fully home the wedgelock will not seat, so it doubles as a simple go/no-go check on the assembly. The orange colour makes the presence of the wedgelock obvious against the grey DT housing during inspection.
Key specifications
| Series | DEUTSCH DT |
|---|---|
| Part number | W2S |
| Component type | Wedgelock (secondary contact lock) |
| Ways | 2 |
| For use with | DT series 2-position plug (socket-contact) housings |
| Colour | Orange |
| Material | Glass-filled PBT |
Typical applications
Wedgelocks are consumed as fast as the housings they serve, because one is required per assembled connector and because they are frequently damaged or lost during field rework. A two-way item is therefore a standard line in vehicle and generator repair kits alongside two-way housings and socket contacts. It is also stocked by harness shops in quantity, since a build cannot be completed or inspected without one.
Supplied by BOLTON Technical Equipment Supplies against request for quotation. Add this item to your RFQ basket to request pricing, lead time and documentation requirements (e.g. CoC, datasheets or test reports where applicable).
